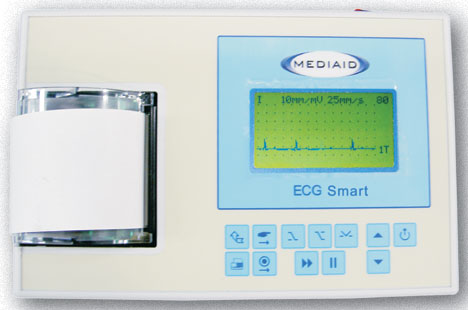

ECG Smart
Single-Channel Electrocardiograph


ECG Smart Single-Channel Electrocardiograph (International Only)

Features of the ECG Smart:

1-channel LCD Display in either Standard or Cabrera formats
Easy Loading & High Resolution Thermal Printer (8 dots/mm), 1 or 3-channel Real Time Hardcopy
12-channel Simultaneous Acquisition, Recording manually or in automatic
Digital Memory with 10 seconds for each lead
Digital Filters for elimination of Muscle Tremors, Powerline or Baseline Disturbances
Predefined Fast Keys Operation
Device with Small Dimensions and Light Weight
Power Supplied through Mains or by internal High Capacity, Quick-charging Ni-Cd Batteries


ECG Smart

- ECG Smart Specifications -

ECG Specs
Power Supply Internal rechargeable Ni-Cd batteries
Line Power Supply 220V~ ±10%; 50 – 60 Hz; 150 mA max; Isolation CL 2 B

Battery Autonomy

3 hours
Applied Part CF type
Input Impedance >100 Mohm
Frequency Response 0.05 : 145 Hz
CMRR >100 dB
Time Constant >3.2 s
Acquisition

12 bit 800 samples / sec. / channel

Leads 12 Standard or Cabrera
Sensitivity 5mm / mV; 10mm / mV; 20mm / mV ±5%
Scrolling Speed 5mm / s; 10mm / s; 25mm / s; 50mm / s
Signal Memory 10 s for each lead
Printer Thermal printer 8 dots / mm, paper 58 – 60 mm
Display LCD 128 x 64 dots
Filters Muscle tremors: 35Hz digital; Power line interferences: 50 – 60 Hz digital;
High pass: 0.5 Hz digital
Defibrillation Protection Internal
Display 1 channel
Hardcopy 1 – 3 channels
Dimensions 190 x 120 x 60 mm
Weight 1.000 g
Case IP 20
Operation Temperature + 10ºC – 40ºC
Storage Temperature - 10ºC – 40ºC
Relative Operation Humidity 25 – 95% without condensation

Standard Accessories
  Patient Cable
  Electrodes Set


Gel, Paper Roll


  Power Cable
  User Manual
  Carrying Case (Optional)
