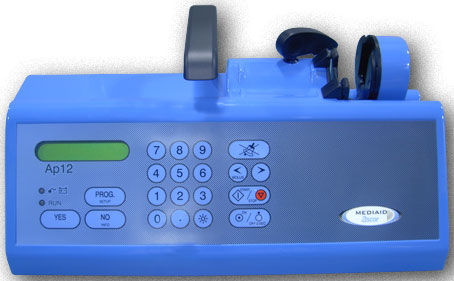

| Model
AP12 Single-Syringe Pump (Available in Asia only) |
Key Features for the Model AP12
include:
*
User-friendly Software for Set-Up & Operation
*
Wide range of Infusion Rates & easy modification of Running Course Infusion Parameters
*
Over 40 types of compatible Syringes (10 – 60 ml)
*
Manual & Automatic Bolus capability,
with Automatic Reduction of Residual Bolus after Occlusion Release
*
4 Operating Modes: Flow Rate alone, along with Volume, with Time or Volume over Time
*
Comprehensive System of Audible/Visual Alarms & Warnings
*
User-selectable Drug Library
*
Passkey Software-controlled Data Lock
*
Powered by Long-life Battery
|
| Model
AP12 Single-Syringe Pump |
| |
-
Model AP12 Single-Syringe Pump Specifications -
| Performance |
| Flow Rate Range |
0.1 – 500ml / h for 50 ml syringe
0.1 – 300ml / h for 30 ml syringe
0.1 – 250ml / h for 20 ml syringe
0.1 – 150ml / h for 10 ml syringe
(0.1 – 99.9 ml / h in 0.1 ml / h steps, 100 – 1000 ml / h in 1 ml / h steps) |
| Volume to be Infused |
0.1 – 1000 ml
(0.1 – 99.9 ml / h in 0.1 ml steps, 100 – 1000 ml / h in 1 ml steps) |
| Maximum Bolus Rate |
2000 ml / h for 50 ml syringe
1200 ml / h for 30 ml syringe
1000 ml / h for 20 ml syringe
600 ml / h for 10 ml syringe |
| Bolus Dose / Induction Dose |
Limited to syringe size |
| Infusion Time Selection |
Up tp 100 h |
| KVO Rate |
0.1 to 5 ml / h, programmable in 0.1 ml / h steps |
| Flow Rate Accuracy |
±2% (complies with EN 60601-2-24) |
| Occlusion Pressure Limit |
4-level selection
High: -120kPa ±10
Medium: -90kPa ±10
Low: -60kPa ±10
Minimum: -40kPa ±10 |
| Compatible Syringes |
10, 20, 30 and 50 / 60 ml |
| Syringe Brands |
B. BRAUN, BD, MONOEJECT, CODAN, TERUMO, IVAC,
INJECTOMAT, PENTAFERTE and other (see operating manual) |
Extended System of
Alarms and Warnings
(both Audible & Visual) |
Alarms: no. syringe, wrong syringe, empty syringe, end of infusion,
occlusion, no mains, discharged battery, internal malfunction.
Pre-Alarms: 5 minutes left to the end of infusion or
till the syringe gets empty, low battery. |
| Technical Specifications |
| Power Supply |
11.8 (L)
x 7.9 (W) x 3.9 (H) In
30 (L) x 20 (W) x 9.8 (H) cm |
| Power Consumption |
max 10VA |
| Built-in Battery |
Rechargeable ni-Cd of increased durability |
| Battery Life |
24 hrs at a flow rate of 5 ml / h |
| Battery Charging Time |
24 hrs |
| Electrical Safety |
Class 1, type BF, IP31 |
| Conformity Standards |
EN 60601-1
EN 60601-1-2(EMC)
EN 60601-1-2-24
MDD 93/42/EEC |
| Weight |
3.1 kg |
| Dimensions (W x D x H) |
320 x 180 x 140 mm |
| Operating Conditions |
5º – 40ºC; realtive humidity: 20 – 90% |
| Other Features |
| External Alarm Socket |
24V, 1A |
| Other Functions |
Anti-Bolus System
Automatic Syringe Size Recognition
Battery Life Indicator
User Selectable Drug Name
Programmable Name of the Ward
Infusion Pressure Monitoring
Infusion Parameters Protected by a Password
Priming
Stand By
Extended Menu of User Tests & Service Tests |
