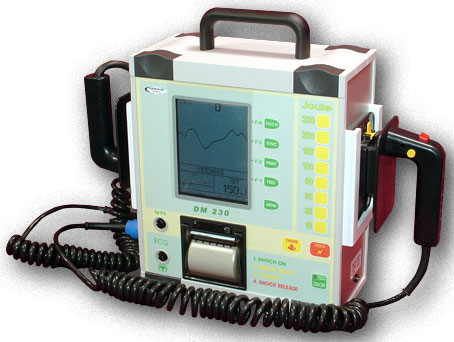

| Model DM 230 Biphasic Defibrillator (Available in Asia only) |
| Features
of the Model DM 230 include:
Large 5.7 inch High Resolution back-lit LCD Display
ECG "R" Wave Synchro Mode or Async Mode
ECG through Paddles or Patient Cable
BTE (Biphasic Truncated Exponential) Discharge Type
Front Panel-selected Impedance-compensated Energy Delivery from 3 to 230 Joules
Paddles-controlled Charge/Discharge
100 shocks of 230 Joules & 5 second Charge Time on fully-charged Batteries
SpO2 Sensor compatible with NONIN
Optional: Can be used with Disposable Paddles
|
-
Model DM 230 Specifications -
| Display |
Large (5.7 in.) High resolution back-lit LCD Display (320 x 240 dots) |
ECG through the discharge paddles (1 trace) or through 4-leads patient cable (6 traces): |
I, II, III, aVR, aVL, aVF, SpO2 Trace & Values |
Automatic change-over when plugging the patient cable |
| Filters |
50 Hz / 60 Hz baseline, low pass |
| |
Heart Rate Indicator |
|
| Pulse Oximetry (SpO2) |
Oxygen Saturation Range |
0 to 100% |
| Pulse Rate Range |
18 to 300 pulses per minute |
| Accuracy SpO2 |
70 – 100% ±2 digits for adults using
the Finger Clip Sensor |
| Non-Invasive Pacemaker |
| |
Rectangular Wave |
|
| Pulse Time |
22mS |
| Pulse Current |
MAX 150 mA |
| Pulse Voltage |
MAX 150V |
| Operation Modes |
| |
Fixed |
|
| |
On Demand
|
|
|
Printer |
Integrated Thermal Printer for ECG traces and events documentation |
| |
Hardcopy including SpO2 level in % |
|
| Paper Speed |
±2% (70-100%), Unspecified (50~69%) |
| Paper Width |
0~100% |
| Safety Features |
| |
Two hand safety shock release |
|
| |
ECG input isolation CF class |
|
| Internal discharge after 30 sec. of standby after charge |
| Power
Supply |
Internal Ni-Cd high capacity batteries with fast charge time |
| Charging Time (985%) |
2 hours |
| Mains Adapter Charger |
100 – 230 VAC, ±10% 50 / 60 Hz |
| Operating Conditions |
| Operating Temperature |
0 – 50șC |
| Storage Temperature |
-20 – 65ºC |
| Relative Air Humidity |
15 – 80% |
| Splash Proof |
IPX4 |
| Dimensions |
| Size |
340 x 260 x 130 mm |
| Weight |
5.5 kg |
| Model DM 230 Defibrillator Brochure |
Low
Resolution (For Email)
Model DM 230 (188K) |
High
Resolution (For Print)
Model DM 230 (1.1M) |
