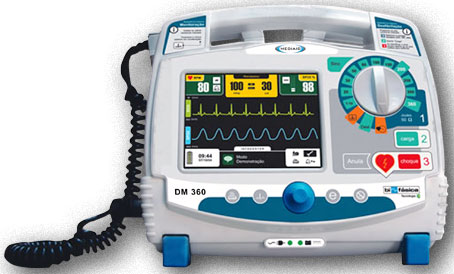

| Model DM 360 Biphasic Monitor Defibrillator (Available in Asia only) |
| Features
of the Model DM 360 include:
Active Matrix Color Display for clear visualization of all information & waveforms
Easy operation "1, 2, 3" Pattern concentrated in button selection in either Operation Mode or "e-Jog"
Biphasic Shock up to 360 Joules, reenergizing within 6 seconds
Fast & easy battery change-out, without any need for opening the equipment
Modern, robust & intelligent design with a new generation of clean, elegant & intuitive interface
Small & compact: weighing only 5.5 kg. (with battery & paddles), including a convenient device handle
Digital Memory: 2 Megabytes of continuous ECG Monitoring of up to either the last 2 or 5 hours,
plus Events, Drug Administrations, Alarms, Fails & Shocks
Options for ECG and SpO2:
Internal Defibrillation, External Pacemaker, Cardioversion & Recorder
|
-
Model DM 360 Specifications -
| ECG |
| Sensitivity |
5, 10, 15, 20, 30 & 40mm / mV |
| ECG Cable |
3 to 5 wires |
| Measurement Range |
15 – 250 BPM |
| Accuracy |
±1 BPM from 30 – 250 BPM |
Defibrillator Discharge
Protection |
< 5 sec according to IEC601-2-27 |
| Alarm |
Adjustable between 15 & 250 BPM |
| Derivations |
DI, DII, DIII, aVR, aVL, aVF, C |
| Filter |
60 Hz, for the electric power interference |
| Digital filter for the baseline stabilization |
| SpO2 |
| Measurement Range |
0 – 100% |
| Accuracy |
±2% from 70 – 100% |
| ±3% from 50 – 69% |
| Alarm |
Adjustable between 50 & 100% |
| Pulse Range |
30 – 250 BPM |
| Accuracy |
±2 BPM from 30 – 250 BPM |
| Cardioversion |
| Maximum Charge Time |
RA-LL impedance |
| Pediatric / Internal Defibrillation Scales |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 40 & 50 Joules |
| Adult / External Defibrillation Scales |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 50, 80,
100, 150, 200, 250, 300 & 360 Joules |
| Waveform |
Biphasic truncated exponential |
| Pacemaker (optional) |
| Type |
Demand and Asynchronous |
| Current |
5 – 200 mA |
| PPM |
30 – 180 PPM |
| Pulse |
20 mS |
|
Operating Conditions |
| Operating Temperature |
0 – 50ºC |
| Storage Temperature |
0 – 70ºC |
| Operating Humidity |
10 – 95% RH, without condensation |
| Storage Humidity |
10 – 100% RH, without condensation |
| Electromagnetic Compatibility |
Irradiated and conducted, CISPR11 |
| Dimensions |
| Width |
30 cms |
| Height |
23 cms |
| Depth |
21 cms |
| Weight |
5.5 kg (including recorder, battery & paddles) |
| Standards |
| |
IEC 60601-2-4/2002 |
|
|
NBR IEC 60601-1/1997 |
|
NBR IEC 60601-1/1994 |
|
NBR IEC 60601-2/1997 |
|
NBR IEC 60601-2-27/1997 |
|
NBR IEC 60601-49 |
