Model 100 Pulse Oximeter
REF : POX 010-100


Model 100 Pulse Oximeter

A pocket-sized pulse oximeter. Perfect for the physician's office, emergency medicine, hospitals and clinics, and home health care.

Intended for spot-check monitoring
Fits into lab coat pocket
Compact styling
Multi-sensor versatility - choose from a built-in sensor or the cable adapter module and any sensor with a CompuShield® connector
Advanced DSP technology
2-year warranty

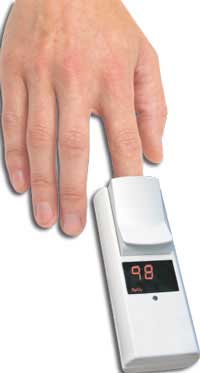

M100 with Integral Finger Sensor

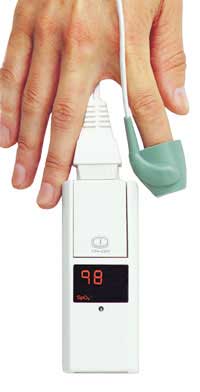

M100 with Cable Adapter
and Soft Sensor

- Model 100 Pulse Oximeter Specifications -

Oxygen Saturation and Pulse Rate
Display 3-digit, 7-segment LED
Resolution SpO2: 1%
Pulse: 1 BPM
Range SpO2: 20-100%
Pulse: 25-250 BPM

Accurracy

 SpO2: 100-70% ± 2%
69-60% ± 3%
Less than 60% unspecified
Pulse: 25 to 200 BPM ± 2 BPM or 2%
(whichever is greater)
Above 200 ± 3%
  SpO2 & Pulse: 8 secs. for 80% of the population



General
Dimensions 4.73 in L x 1.82 in W x 0.96 in H
(12 cm L x 4.6 cm W x 2.46 cm H)
Weight 4.1 oz. (113 grams) with Cable Adapter
3.9 oz. (111 grams) with Integral Finger Sensor
(weight includes battery)



Power Source
Battery Type One 1.5 volt, AA-sized alkaline battery
Battery Life Approximately 1200 spot checks (using Duracell® Ultra)
