Model 130 Pulse Oximeter
REF : POX 010-130


Model 130 Pulse Oximeter

The Model 130 has expanded memory capabilities for overnight sleep screening.


* Memory - 30 minutes and/or 20 patients and/or 11.5 hours
* Pocket-sized, compact styling
* Transmits data to a hand-held printer or personal computer
* Multi-sensor versatility - choose from a built-in sensor or the cable adapter module and any sensor with a CompuShield® connector
* Advanced DSP technology
* 2-year warranty

The Model 130 has memory to retain oxygen saturation and pulse rate data, and can operate in three different modes to best suit your needs:

1. The Model 130 can retain up to 30 minutes of information for a single patient, making the device ideally suited for treadmill or other long-duration tests.
2. The Model 130 can also be used in walk-around tests, storing data for up to 20 consecutive patients, tagging each reading with a patient number, time, and date.
3. The Model 130 also includes expanded memory for sleep screening where data can be stored every 5 seconds for up to 11.5 hours.
Data stored in any mode can be printed or quickly transferred by infrared to a personal computer.

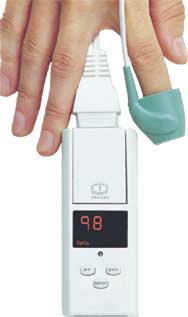

M130 with Integral Finger Sensor
Oxysoft™ Software (Optional Accessory)
Oxysoft™ Software
Oxysoft™ Pulse Oximetry software is available on a CD-ROM and has been developed by Mediaid Inc. to display saturation and pulse rate data in a variety of helpful formats. Oxysoft™ software enables the health care professional to present data in graphical or tabular format with relevant statistics. A zoom feature allows analysis in detail and comments may be added for the permanent file.

- Model 130 Pulse Oximeter Specifications -

Oxygen Saturation and Pulse Rate
Display 3-digit, 7-segment LED
Resolution SpO2: 1%
Pulse: 1 BPM
Range SpO2: 20-100%
Pulse: 25-250 BPM

Accurracy

 SpO2: 100-70% ± 2%
69-60% ± 3%
Less than 60% unspecified
Pulse: 25 to 200 BPM ± 2 BPM or 2%
(whichever is greater)
Above 200 ± 3%
SpO2 & Pulse: 8 secs. for 80% of the population



General
Dimensions 4.73 in L x 1.82 in W x 0.96 in H
(12 cm L x 4.6 cm W x 2.46 cm H)
Weight 4.1 oz. (113 grams) with Cable Adapter
3.9 oz. (111 grams) with Integral Finger Sensor
(weight includes battery)
Memory 30 minutes for single patient or
20 patients with multiple readings each
11.5 hours overnight sleep screening



Power Source
Battery Type One 1.5 volt, AA-sized alkaline battery
Battery Life Approximately 1200 spot checks (using Duracell® Ultra)
