Model 30 Pulse Oximeter
REF : POX 010-30


Model 30 Pulse Oximeter

A hand-held pulse oximeter for convenient spot checking.  Perfect for the physician's office, hospitals and clinics, diagnostic centers and home health care.

Bright LED displays indicate Oxygen Saturation and Heart Rate
Bar graph displays Pulse Amplitude and Perfusion Quality
User-friendly keypad layout
Unique averaging sequencing technique updates values and provides faster response times
Rechargeable Lithium Ion battery and inbuilt charger circuit
2-year warranty

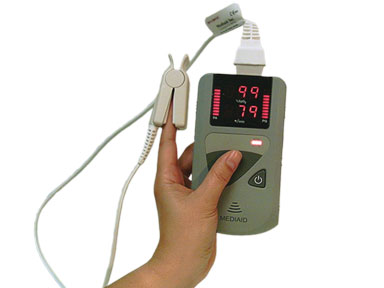

M30 with Cable Adapter
and Soft Sensor

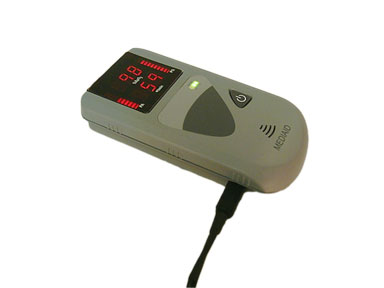

M30 with Rechargeable Lithium Ion Battery
and Inbuilt Charger Circuit

- Model 30 Pulse Oximeter Specifications -

Pulse Oximetry and Heart Rate
Display Two 3-digit, 7-segment LED for %SpO2 and Pulse Rate
Two 10-segment LED bar graph for Pulse Amplitude and Perfusion Quality
Resolution SpO2:  1%
Pulse:  1 BPM
Range SpO2:  0 – 100%
Pulse:  25 – 250 BPM

Reading Accurracy

 SpO2:  100 – 70%, ± 2%
Less than 70%, unspecified
Pulse:   25 – 250 BPM, ± 2 BPM or 2% (whichever is greater)



Sensors
Mediaid Pulse Oximetry sensors with Compushield® Connector



General
Dimensions 5.5 in L x 3 in W x 1.1 in H
(14 cm L x 7.6 cm W x 2.7 cm H)
Weight 7.05 oz. (200 grams) without sensor



Electrical Ratings
Charging Voltage 9 V DC 750 mA
Battery Type Rechargeable Lithium Ion
Battery Run Time 21 Hours of Operation



Environmental Conditions
(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 770 – 282 mmHg
1026 - 377 hPa
Humidity 5 – 95% (non-condensing)
Operating Temperature 0 – 40 ºC
Storage/Transport Temperature -30 – 65 ºC
