Model 31DT
Desktop Pulse Oximeter


Model 31DT Pulse Oximeter

A desktop pulse oximeter with alarms.   Ideal for the physician's office, emergency care, hospitals, clinics and diagnostic centers.

Desktop Pulse Oximeter that is ideal for most continuous monitoring applications
Bright LED displays indicate Oxygen Saturation and Heart Rate from any angle
   & in most lighting conditions
Audible Pulse Tone varies in Pitch with rise & fall of Oxygen Saturation
Audio/Visual Alarms for Saturation and Pulse Rate
Simple Keyboard layout makes units User-Friendly
Unique Averaging Sequencing Technique updates values & provides faster Response Time
Continuous Battery Condition Indicator

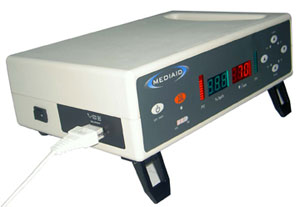

M31DT with Sensor Cable

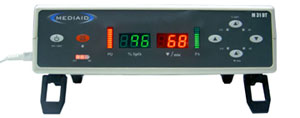

M31DT Desktop Pulse Oximeter

- Model 31DT Pulse Oximeter Specifications -

Pulse Oximetry and Heart Rate
Display Two 3-digit, 7-segment LED for %SpO2 & Pulse Rate
Two 10-segment LED Bar Graph for Pulse Amplitude (PA)
    & Perfusion Quality (PQ)
Resolution SpO2:   1%
Pulse:   1 BPM
Range SpO2:   0 – 100%
Pulse:   25 – 255 BPM

Reading Accurracy

 SpO2:   70 – 100% ± 2%
              Less than 70%, unspecified
Pulse:    25 – 200 BPM, ± 2 BPM or 2%
             (whichever is greater)
Alarm

High SpO2:   87 – 100%
Low SpO2:   85 – 98%
High Pulse:   26 – 255 BPM
Low Pulse:   24 – 253 BPM



General
Dimensions 11.8 in (L) x 8 in (W) x 3.3 in (H)
30 cm (L) x 20.3 cm (W) x 8.4 cm (H)
Weight 7.12 oz. (202 grams) without Sensor
(weight includes battery)



Electrical Ratings
Battery Type Rechargeable Lithium Ion
Battery Run Time 12 hours
Power Input 100 – 230 V AC, 50/60 Hz



Environmental Conditions
(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 770 – 282 mmHg
1026 - 377 hPa
Humidity 5 – 95% (non-condensing)
Operating Temperature 0 – 40 ºC
Storage/Transport Temperature -30 – 65 ºC
