Model 340V Veterinary Pulse Oximeter


Model 340V Veterinary Pulse Oximeter with Thermistor

The Model 340V is unique with excellent low perfusion monitoring, sturdy washable clip-on sensor, rectal probe with thermister for oxygen saturation plus body temperature (in degrees celsius or Farenheit), and automatic temperature display every two minutes or when solicited.

* Portable: Small pulse oximeter with adjustable alarms & LED display.
* Alarms: Provides audio & visual monitoring of the saturation (%SpO2) and pulse rate (BPM).
* Audible Signals: The audible pulse tone is adjustable & varies in pitch based on changing
   oxygen saturation readings.
* Connections: Analog/serial output allows information be connected directly to
   other monitoring diagnostic equipment.
* Power: Runs continuously for 12 hours on NiCad batteries or can be powered with
    the provided AC/DC adapter.
* Warranty: The Mediaid Inc. limited warranty covers five years.
* Veterinary Lingual Clip: The reusable lingual oximetry sensor is suitable for all dogs & cats
    & some large animals.
* Veterinary Rectal with Thermistor: This oximetry sensor is suitable for both large & small animals.
    A thermistor provides a body temperature reading which is displayed intermittently or on demand
     in either Celsius or Farenheit.

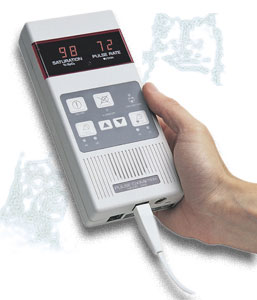

Model 340V Pulse Oximeter

- Model 340V Pulse Oximeters Specifications -

Oxygen Saturation and Pulse Rate
Display Two 3-digit, 7-segment LED
Resolution SpO2: 1%
Pulse: 1 BPM
Temperature: 1ºC / 0.2ºF
Range SpO2: 0-100%
Pulse: 32-250 BPM
Temperature: 24.5ºC - 42.5ºC
                       76.1ºF - 108.5ºF

Accuracy

 SpO2: 100-70% ± 2%
            69-60% ± 3%
            Less than 60% unspecified
Pulse: 32-250 BPM ± 2 BPM
Temperature: 24.5ºC - 42.5ºC
                       76.1ºF - 108.5ºF



Alarms
High SpO2 51 – 100%
Low SpO2 50 – 99%
High Pulse 31 – 245 BPM

Low Pulse

30 – 244 BPM



Sensors
Mediaid Inc. Opto-Plethysmographic Pulse Oximetry Sensors with RJ12 Connector



Dimensions
Size 7.5 (L) x 3.5 (W) x 1.4 (H) in.
19.1 (L) x 8.9 (W) x 3.5 (H) cm
Weight 18.2 oz. (516 grams)



Environment
Atmospheric Pressure 770 – 282.45 mmHg
1026 – 377 hPa
Altitude -152 – 7620 m
-500 – 25,000 ft.
Relative Humidity 5 – 95% (non-condensing)

Operating Temperature

0ºC – 40 ºC
32ºF – 104ºF
Storage Temperature -30ºC – 65ºC
-22ºF – 149ºF



Power Source
Battery Type NiCad rechargeable
Battery Life 12 hours in continuous operation
Power Adaptor 100 - 250 V AC 50/60 Hz, 0.5 A
