Model 340 Pulse Oximeter
Product No. REF : POX010-340

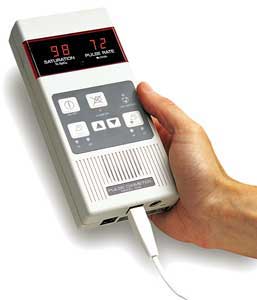

Model 340 Pulse Oximeter

The Model 340 is intended for continuous pulse oximetry and has visual and audible alarms to aid with patient monitoring.

* Intended for continuous pulse oximetry
* Ideal for most users and situations
* A portable pulse oximeter with alarms and two bright LED displays
* 12-hour NiCad or continuous AC-powered operation
* Adjustable pulse tone levels
* Pitch changes with rise or fall in oxygen saturation
* Adjustable alarm levels for oxygen saturation and pulse rate
* Previous alarm settings are recalled from memory
* Output port for data communication to other instruments

Model 340 Pulse Oximeter

- Model 340 Pulse Oximeters Specifications -

Oxygen Saturation and Pulse Rate
Display Two 3-digit, 7-segment LED
Resolution SpO2: 1%
Pulse: 1 BPM
Range SpO2: 0-100%
Pulse: 32-250 BPM

Accuracy

 SpO2: 100-70% ± 2%
            69-60% ± 3%
            Less than 60% unspecified
Pulse: 32-250 BPM ± 2 BPM



Alarms
High SpO2 51 – 100%
Low SpO2 50 – 99%
High Pulse 31 – 230 BPM

Low Pulse

30 – 229 BPM



Sensors
Mediaid Inc. Opto-Plethysmographic Pulse Oximetry Sensors with RJ12 Connector



Dimensions
Size 7.5 (L) x 3.5 (W) x 1.38 (H) in.
19.1 (L) x 8.9 (W) x 3.5 (H) cm
Weight 17.5 oz. (496 grams)



Environment
Atmospheric Pressure 770 – 282.45 mmHg
1026 – 377 hPa
Altitude -152 – 7620 m
-500 – 25,000 ft.
Relative Humidity 5 – 95% (non-condensing)

Operating Temperature

0ºC – 40 ºC
32ºF – 104ºF
Storage Temperature -30ºC – 65ºC
-22ºF – 149ºF



Power Source
Battery Type NiCad rechargeable
Battery Life 12 hours in continuous operation
Power Adaptor 100 - 250 V AC 50/60 Hz, 0.5 A
