Model 34 Pulse Oximeter
REF : POX 010-34


Model 34 Pulse Oximeter

A hand-held pulse oximeter.   Ideal for the physician's office, emergency care, hospitals, clinics, diagnostic centers, home health care and sleep screening.

Pulse Oximeter with Audio and Visual Alarms, Memory, USB and Infrared Ports
Bright LED displays indicate Oxygen Saturation and Heart Rate
Bar Graph displays Pulse Amplitude and Perfusion Quality indication
Plethysmograph display on computer using optional software
Ability to output/print Trend Data via USB & Infrared Ports
High speed, low power Printer Option operating in three different modes
2-year warranty

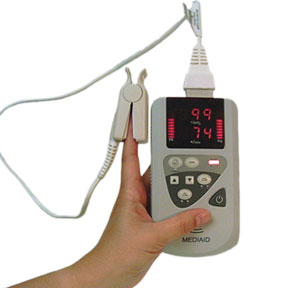

M34 with Cable Adapter
and Soft Sensor
M34 with Printer Option

- Model 34 Pulse Oximeter Specifications -

Pulse Oximetry and Heart Rate
Display Two 3-digit, 7-segment LED for %SpO2 & Pulse Rate
Two 10-segment LED Bar Graph for Pulse Amplitude & Perfusion Quality
Resolution SpO2:   1%
Pulse:   1 BPM
Range SpO2:   0 – 100%
Pulse:   25 – 250 BPM

Reading Accurracy

 SpO2:   100 – 70% ± 2%
              Less than 70%, unspecified
Pulse:    25 – 250 BPM, ± 2 BPM or 2%
             (whichever is greater)
Alarm

High SpO2:   87 – 100%
Low SpO2:   85 – 98%
High Pulse:   26 – 250 BPM
Low Pulse:   24 – 248 BPM



General
Dimensions 5.5 in L x 3 in W x 1.1 in H
(14 cm L x 7.6 cm W x 2.7 cm H)
Weight 7.12 oz. (202 grams) without Sensor
(weight includes battery)



Electrical Ratings
Charging Voltage 9 V DC 750 mA
Battery Type Rechargeable Lithium Ion
Battery Run Time 21 hours of Operation (in Sleep mode with low speaker volume)



Environmental Conditions
(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 770 – 282 mmHg
1026 - 377 hPa
Humidity 5 – 95% (non-condensing)
Operating Temperature 0 – 40 ºC
Storage/Transport Temperature -30 – 65 ºC
