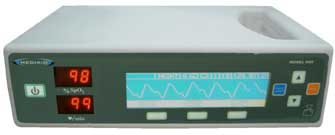

Model 900 Pulse Oximeter



Model 900 Pulse Oximeter

The Model 900 is a pulse oximeter with waveform designed for supporting an optional
RS232 Serial Port, an Analog Output, and a Nurse Call feature.

* LCD Display Screen for viewing waveforms.
* Separate LCD display for SpO2, and Pulse Rate readings.
* On screen display of SpO2 and Pulse Alarm limits.
* Rate trends for up to 24 hours (½, 1, 2, 6, 12 and 24 hours breakdown).
* Display Graphical Tabular trends.
* Bright high quality backlight screen for easy viewing.
* Monitors Pediatric, Adult Patients weighing above 5 kg.
* User configurable Power On settings.
* Range of disposable and reusable sensors available.


Model 900 Pulse Oximeter



- Model 900 Pulse Oximeter Specifications -

Pulse Oximetry and Heart Rate
Resolution SpO2             1%
Pulse             1 BPM
Range

SpO2             1 - 100%
Pulse           25 - 250 BPM

Accurracy

 SpO2            100 - 70%± 3%
                     ≤ 69%, Unspecified
Pulse             25 - 250 BPM, ± 2 BPM

Physical Specifications
Displays Two 3-digit, 7-segment LED Graphic (240 x 64)
fluorescent backlight LCD display.
Dimensions 11.8 (L) x 8.0 (W) x 3.3 (H) in.
30 (L) x 20.3 (W) x 8.4 (H) cm.
Weight 5.6 lbs. / 2.54 kgs.

Power Source
Battery Type Lead acid battery, Internal 12 V.
Battery Life 2 hours continuous operation,
Power Input 100 - 230V AC 50/60 Hz.

Environmental Conditions
(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 760 mmHg
Humidity 5 - 95% (non-condensing)
Operating Temperature 0 - 40 °C

Storage / Transport
Temperature

 -30 - 65 °C



Model 900 Series Pulse Oximeter Brochure & Manual

Low Resolution (For Email)

Model 900 Series (124K)
French Brochure (116K)
German Brochure (124K)
Portuguese Brochure (120K)
Spanish Brochure (124K)

High Resolution (For Print)

Model 900 Series (580K)
French Brochure (568K)
German Brochure (428K)
Portuguese Brochure (592K)
Spanish Brochure (596K)

Manuals

English (2.1M)
Portuguese (2.2M)
Spanish (2.5M)
