Model 960VP Veterinary Vital Signs Monitor



Model 960VP Veterinary Vital Signs Monitor

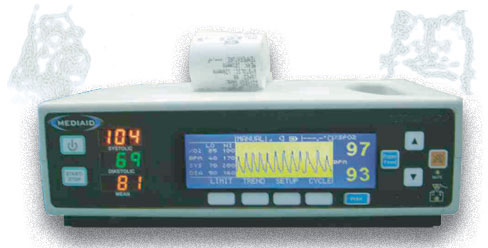

The Model 960VP is a veterinary vital signs monitor designed for Oxygen Saturation (SpO2), Pulse Rate (BPM), Non-Invasive Blood Pressure (NIBP), Temperature, and an optional Printer.  It has a rechargeable internal battery.

* Compact vital signs monitoring system for checking Oxygen Saturation (SpO2), Pulse Rate (BPM),
   Non-Invasive Blood Pressure (NIBP), and Temperature.
* Bright, high resolution LCD screen to display the Pleth Waveform as well as the SpO2 and
   Pulse Rate readings.
* Separate bright LED displays for systolic, diastolic and mean Blood Pressure readings.
* Printer facility for printing reports immediately.
* Accurate Blood Pressure readings in less than 40 seconds.
* Six different languages option for easy access to clinicians across the world.


Model 960VP Veterinary Vital Signs Monitor

- Model 960VP Veterinary Vital Signs Monitor Specifications -

Display



High resolution fluorescent backlit 240 x 64 LCD graphical screen
for Pleth waveform, SpO2, and BPM readings.





Three 3-digit, bright 7-segment LED displays for Systolic, Diastolic
and mean Blood Pressure readings .



Non-Invasive Blood Pressure
Technique Oscillometric
Measurement Range

Systolic    40 - 265 mmHg
Diastolic   20 - 200 mmHg
Mean       27 - 222 mmHg
Pulse       25 - 300 BPM

Initial Inflation Pressure Large Animal:   160 mmHg (default) & Variable from 120 – 280 mmHg
Small Animal:   160 mmHg (default) & Variable from 60 – 280 mmHg
Systolic Accuracy Mean Error less than ± 5 mmHg
SD less than ±8 mmHg

Diastolic Accurracy

 Mean Error less than ± 5 mmHg
SD less than ±8 mmHg

Pulse Oximetry and Heart Rate
Range

(% SpO2)     1 - 100%
(Pulse)        25 - 300 BPM

Resolution (% SpO2)     1%
(Pulse)         1 BPM

Reading Accurracy

 (% SpO2)     (100 - 70%) ± 2%
                    (≤ 69%), Unspecified
(Pulse)         (25 - 300 BPM), ± 2 BPM

Temperature Readings
Scale Selectable °F/°C
Accuracy ±0.3 °F / ±0.2 °C
Patient Temp Range 73.4 °F - 113 °F / 23 - 45 °C
Measurement Time Dependent on probe placement & patient condition;
normally within 60 seconds.

Electrical Ratings
AC Voltage AC 100 - 230 V, 50/60 Hz
Battery Type Recharageable internal battery
Battery Run Time Up to 45 minutes on a full-charge with SpO2, and NIBP readings
once every 10 minutes.

Environmental Conditions
(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 770 - 282.45 mmHg
1026 - 377 hPa
Humidity 5 - 95% (non-condensing)
Operating Temperature 0 - 40 °C

Storage / Transport
Temperature

 -30 - 65 °C

Physical Specifications

Dimensions 11.8 (L) x 8.0 (W) x 3.3 (H) in.
30 (L) x 20.3 (W) x 8.4 (H) cm
Weight 2.85 kgs. or 5.6 lbs. (without Accessories)
3.35 kgs. or 7.3 lbs. (with Accessories)
