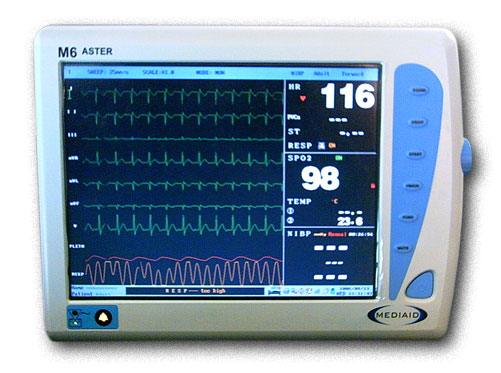

| M6 ASTER
(Available in Asia only) |
| Features
of the M6 ASTER include:
12.1” Color TFT Display with 9 waveforms
Parameters include ECG/RESP, SpO2, NIBP, TEMP and Pulse
Rate
Optional: IBP, EtCO2
Arrhythmia Analysis, S-T Segment Analysis, HR Analysis, and NIBP & SPO2 combined Analysis
Maximum 72-hour trend data display and 2880 NIBP data storage
Direct, Reverse and Quick NIBP measurement modes
Suitable for adult, pediatric and neonatal patient
Networking Capabiltiy
Protection function for NIBP over-range
Built-in rechargeable Battery |
-
M6 Specifications -
| General
Specifications |
| Display |
Display:
12.1” color TFT |
| 800x600
resolution |
| Trace |
9 Waveforms |
| Sweep |
6.25mm/s,
12.5mm/s, 25mm/s, 50mm/s |
| Indicator |
Alarm Indicator |
| Power Indicator |
| QRS beep
and alarm sound |
| Interface |
Net Port |
| Battery |
Rechargeable |
| Trend
Time |
1 – 72 hours |
| Alarm |
3-level
audible and visual alarm |
| Networking |
Can be connected to central monitoring system |
| Recorder |
Built
in, thermal array |
| ECG |
| 5-lead |
Selectable |
Input |
5 lead
(RA, LA, RL, LL, C) |
| Lead
Selection |
I, II,
III, avR, avL, avF, V |
| ECG
Waveform |
7 channels |
| Gain
Selection |
x0.5, x1, x2, x4 |
| Sweep
Speed |
12.5mm/s,
25mm/s, 50mm/s |
| Heart
Rate Range |
Adult 15 – 300bpm |
| Pediatric/Neonatal
15 – 350bpm |
| Accuracy |
±2bpm
or ±2% (whichever is greater) |
| Resolution |
1bpm |
| Protection |
Withstand
4000V AC/50Hz in isolation |
| Against
electrosurgical interference and defibrillation |
| CMRR |
85 dB |
| Calibration
Signal |
1mV±5% |
| Modes |
Diagnostic,
Monitor and Surgery |
| Bandwidth |
0.05 – 75
Hz |
| Alarm
Range |
Adult 0 – 300bpm |
| Pediatric/Neonatal:
0 – 350bpm |
| S-T
Detection |
Yes |
| S-T
Measurement Range |
-1.0mV – 1.0mV |
| S-T
Alarm Range |
-1.0mV – 1.0mV |
| Arrhythmia
Analysis |
Yes |
| Pacemaking
Analysis |
Yes |
| Alarm |
Audible
and visual alarm, alarm events recallable |
| Respiration |
| Method |
RA-LL impedance |
| Measurement Range |
Adult:
1 – 99 rpm |
| Pediatric/Neonatal:
1 – 99 rpm |
| Resolution |
1 rpm |
| Accuracy |
±2 rpm |
| Alarm Range |
Adult:
1 – 99 rpm |
| Pediatric/Neonatal:
1 – 99 rpm |
| NIBP |
| Method |
Oscillometric |
| Operation Modes |
Manual/Automatic |
| Measurement Unit |
mmHg /
kPa selectable |
| Measurement Types |
Systolic, Diastolic and Mean |
| Measurement Range |
Systolic:
40 – 300 mmHg |
| Diastolic:
10 – 220 mmHg |
| Mean:
20 – 240 mmHg |
| Over
Pressure Protection |
Yes |
| Resolution |
1 mmHg |
| Accuracy |
Mean error
and standard deviation per ANSI/AAMI SP-10 |
| Alarm |
Systolic: 40 – 240 mmHg |
| Diastolic: 10 – 180 mmHg |
| Mean: 20 – 200 mmHg |
Temperature (Surface and Intracavity) |
| Measurement Range |
0 – 45°C |
| Resolution |
0.1°C |
| Accuracy |
±0.2°C (Including Probe) |
| Channel |
Dual-channel |
| Alarm Range |
0 – 45°C |
|
Pulse
Oximetry (SpO2) |
| Measurement Range |
0 – 100% |
| Resolution |
1% |
| Accuracy |
±2 digit (80 – 100%), ±3 digit (60 – 79%), Unspecified (0 – 60%) |
| Alarm Range |
0 – 100% |
| Pulse
Rate Range |
0 – 254
bpm |
| Pulse
Rate Resolution |
1bpm |
| Pulse
Rate Accuracy |
±2bpm or 2% (whichever is greater) |
| Pulse
Rate Alarm |
0 – 254 bpm |
|
IBP |
| Measurement Range |
-100 – 400mmHg |
| Channel |
2 channels |
| Resolution |
1 mmHg |
| Accuracy |
±1mmHg or ±2%, whichever is greater |
| Alarm Range |
Systolic: 40 – 240mmHg |
| Diastolic: 10 – 180mmHg |
| Mean: 20 – 200mmHg |
|
EtCO2 |
| Method |
Infrared Absorption |
| Measurement Mode |
Side stream |
| Measurement Range |
0 – 13% |
| Accuracy |
<5% CO2 (at ATPS): ±2mmHg |
| >5% CO2 (at ATPS): <10% of reading |
| Warm Up Time |
2 – 15 seconds |
| Response Time |
Detector: 28mSec (typical) |
| System: – 100mSec |
| Alarm Range |
Same as measurement range |
| Power
Source (AC/DC) |
| Power |
110 – 220V
AC, 50/60 Hz |
| Battery |
Rechargeable
Battery |
| Ambient
Conditions |
| Temperature |
5 – 40șC |
| Humidity |
80% |
| Safety |
Meets the requirements of IEC 60601 series standard |
Physical Dimensions |
| Dimensions |
330W x 280H x 150D (mm) |
| Weight |
6.5 kg |
