Handheld Pulse Oximeters

Mini Oximeters

Desktop Pulse Oximeters




Features:

  • Desktop Pulse Oximeter that is ideal for most continuous monitoring applications
  • Bright LED displays indicate Oxygen Saturation and Heart Rate from any angle & in most lighting conditions
  • Bar graph displays for Pulse Amplitude and Perfusion Quality indication.
  • Audible Pulse Tone varies in Pitch with rise & fall of Oxygen Saturation
  • Audio and Visual alarms for Saturation & Pulse rate.
  • Simple Keyboard layout makes units User-Friendly
  • Unique Averaging Sequencing Technique updates values & provides faster Response Time
  • Continuous Battery Condition Indicator

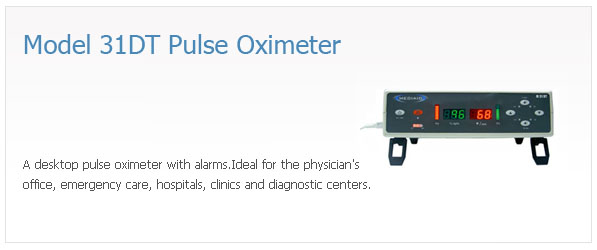

Model 31DT Pulse Oximeter Specifications
Resolution SpO2             1%
Pulse             1 BPM
Range

SpO2             0 - 100%
Pulse            32 – 250 BPM
Accuracy SpO2            70 – 100% ±2%
                     Less than 70%, Unspecified
Pulse            25 – 255 BPM, ±2 BPM or 2%
                    whichever is greater

Alarm

High SpO2          87 – 100%
Low SpO2           85 – 98%
High Pulse          26 – 255 BPM
Low Pulse           24 – 253 BPM
Physical Specifications
Displays Two 3 Digit, 7-Segment LED for %SpO2 & Pulse Rate
Two 10-Segment LED Bar graph for Pulse Amplitude (PA) and Perfusion Quality (PQ) indication
Dimensions 11.8 (L) x 8.0 (W) x 3.3 (H) in.
30 (L) x 20.3 (W) x 8.4 (H) cm.
Weight 1.26 Kg, 44.34 ounce (without sensor)
Sensors Mediaid Pulse Oximetry sensors with Compushield® Connector





Power Source
Battery Type Rechargeable Lithium Ion
Battery Life 12 hours
Power Input 100 - 230V AC 50/60 Hz.
Environmental Conditions

(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 770 to 582 mmHg / 1026 to 775 hPa
Humidity 5 - 95% (non-condensing)
Operating Temperature 0 - 40 °C

Storage / Transport
Temperature

 -30 - 65 °C


Model 31DT Series Pulse Oximeter Brochure & Manual

Brochure

English (90K)
Italian (91K)
Portuguese (92K)
Spanish (92K)

Manual

English (1.3M)
Spanish (1.8M)
