Features:

  • LCD Display Screen for viewing waveforms
  • Separate LED display for SpO2 and Pulse Rate readings
  • On screen display of SpO2 and Pulse Alarm limits
  • Rate trends for upto 24 hours (1/2, 1, 2, 6, 12 and 24 hours breakdown)
  • Display Graphical Tabular trends
  • Bright high quality backlight screen for easy viewing
  • Monitors Pediatric through Adult Patients weighing above 5 kg.
  • User configurable power on settings
  • Range of disposable and reusable sensors available
  • Optional features: RS232 Serial Port, Analog Output, Nurse Call

Pulse Oximetry and Heart Rate
Resolution SpO2             1%
Pulse             1 BPM
Range

SpO2             1 - 100%
Pulse           25 - 250 BPM

Accuracy SpO2            100 - 70%± 3%
                     ≤ 69%, Unspecified
Pulse             25 - 250 BPM, ± 2 BPM

Alarms

High SpO2          10 - 100%
Low SpO2           1 - 98%
High Pulse          22 - 253 BPM
Low Pulse           20 - 168 BPM
Physical Specifications
Displays Two 3-digit, 7-segment LED Graphic (240 x 64)
fluorescent backlight LCD display.
Dimensions 11.8 (L) x 8.0 (W) x 3.3 (H) in.
30 (L) x 20.3 (W) x 8.4 (H) cm.
Weight 5.6 lbs. / 2.54 kgs.



Power Source
Battery Type Lead acid battery, Internal 12 V.
Battery Life 2 hours continuous operation,
Power Input 100 - 230V AC 50/60 Hz.
Environmental Conditions

(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 760 mmHg
Humidity 5 - 95% (non-condensing)
Operating Temperature 0 - 40 °C

Storage / Transport
Temperature

 -30 - 65 °C

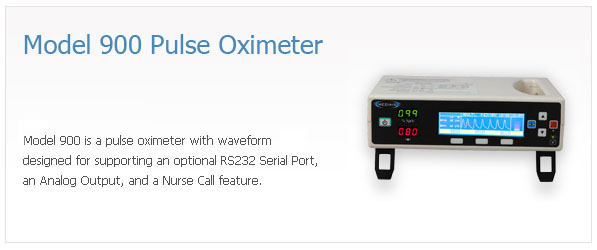

Model 900 Series Pulse Oximeter Brochure & Manual
