Features:

  • Intended for spot-check monitoring
  • Fits into lab coat pocket
  • Compact styling
  • 2-year warranty
  • Multi-sensor versatility - choose from a built-in sensor or the cable adapter module or any sensor with a CompuShield® connector
  • Advanced DSP technology

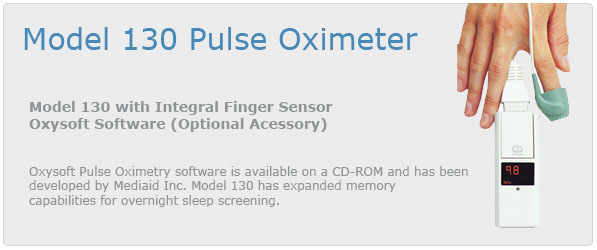

Model 130 has memory to retain oxygen saturation and pulse rate data, and can operate in three different modes to best suit your needs:

  1. Model 130 can retain up to 30 minutes of information for a single patient, making the device ideally suited for treadmill or other long-duration tests
  2. Model 130 can also be used in walk-around tests, storing data for up to 20 consecutive patients, tagging each reading with a patient number, time and date
  3. Model 130 also includes expanded memory for sleep screening where data can be stored every 5 seconds for up to 11.5 hours
  4. Data stored in any mode can be printed or quickly transferred by infrared to a personal computer

Oxygen Saturation and Pulse Rate

Display 3-digit, 7-segment LED
Resolution SpO2: 1%
Pulse: 1 BPM
Range SpO2: 20-100%
Pulse: 25-250 BPM

Accuracy

SpO2: 100-70% ± 2%
69-60% ± 3%
Less than 60% unspecified
Pulse: 25 to 200 BPM ± 2 BPM or 2%
(whichever is greater)
Above 200 ± 3%
SpO2 & Pulse: 8 secs. for 80% of the population
General

Dimensions 4.73 in L x 1.82 in W x 0.96 in H
(12 cm L x 4.6 cm W x 2.46 cm H)
Weight 4.1 oz. (113 grams) with Cable Adapter
3.9 oz. (111 grams) with Integral Finger Sensor
(weight includes battery)
Memory 30 minutes for single patient or
20 patients with multiple readings each
11.5 hours overnight sleep screening

Power Source

Battery Type One 1.5 volt, AA-sized alkaline battery
Battery Life Approximately 1200 spot checks (using Duracell® Ultra)
