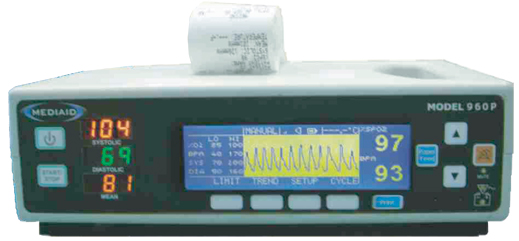

Model 960P Pulse Oximeter



Model 960P Pulse Oximeter

The Model 960P is a pulse oximeter designed with Non-Invasive Blood Pressure (NIBP), Temperature, and an optional Printer.  It has a rechargeable internal battery.

* Compact pulse oximetry system for monitoring SpO2, Pulse Rate, Non-Invasive Blood Pressure,
   and Temperature.
* High resolution LCD screen with separate LED displays for systolic, diastolic & mean Blood Pressure.
* Printer facility for immediate reports, & Nurse Call facility for emergency nurse station alert.
* Accurate BP readings in less than 40 seconds.
* Nurse call facility that alerts the nurse station in case of emergency.
* 24 hour Patient Data storage and Trend Data.


Model 960P Pulse Oximeter

- Model 960P Pulse Oximeter Specifications -

Display



High resolution fluorescent backlight 240 x 64 LCD graphical screen
for Pleth waveform, SpO2, and BPM readings.





3-digit, bright 7-segment LED displays for NIBP readings .



Non-Invasive Blood Pressure
Technique Oscillometric
Measurement Range

Systolic    40 - 260 mmHg
Diastolic   20 - 200 mmHg
Pulse       40 - 200 BPM

Accuracy  ± 3 mmHg

Pulse Oximetry and Heart Rate
Range

(% SpO2)     1 - 100%
(Pulse)        25 - 250 BPM

Resolution (% SpO2)     1%
(Pulse)         1 BPM

Reading Accurracy

 (% SpO2)     (100 - 70%) ± 3%
                    (≤ 69%), Unspecified
(Pulse)         (25 - 250 BPM), ± 2 BPM

Temperature Readings
Scale Selectable °F/°C
Accuracy ±0.2°F / ±0.1°C (excluding probe error)
Patient Temp Range 73.4 °F - 113 °F / 23 - 45 °C
Measurement Time Dependent on probe placement & patient condition;
normally within 60 seconds.

Electrical Ratings
AC Voltage AC 100 - 230 V, 50/60 Hz
Battery Type Recharageable internal battery, 12 V
Battery Run Time 2 hours in Power save mode, no printing & NIBP running at 90 min. interval; using new, fully charged battery .

Environmental Conditions
(Acceptable conditions for operating, storage and transport)
Atmospheric Pressure 760 mmHg
Humidity 5 - 95% (non-condensing)
Operating Temperature 0 - 40 °C

Storage / Transport
Temperature

 -30 - 65 °C

Physical Specifications

Dimensions 11.8 (L) x 8.0 (W) x 3.3 (H) in.
30 (L) x 20.3 (W) x 8.4 (H) cm.
Weight 2.85 kgs. or 5.6 lbs. (without Accessories)
3.35 kgs. or 7.3 lbs. (with Accessories)
