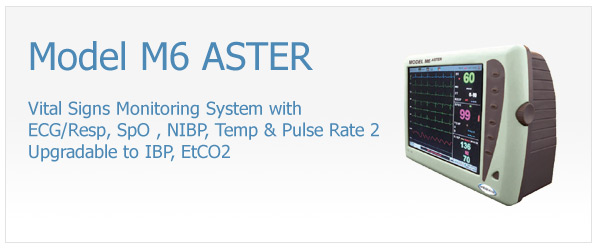

Features:
- 12.1 inch Color TFT Display with 9 waveforms
- Parameters include ECG/Resp, SpO2 , NIBP, Temp and Pulse Rate
- Optional: IBP, EtCO2
- Arrhythmia Analysis, S-T segment analysis, HR analysis, NIBP and SpO2 combined analysis
- Maximum 72 hours trend data display and 2880 NIBP data storage
|
- Direct, Reverse and Quick NIBP measurement modes
- Suitable for adult, pediatric and neonatal patient
- Networking capability
- Protection function for NIBP over-range
- Built-in rechargeable Battery
|
Technical Specifications
|
| Safety |
|
Meets the requirements of |
IEC60601 |
| Dimension and Weight |
| Dimension |
330mm (W) x 280mm (H) x 150mm (D) |
| :Weight: |
6.5kg |
| Operation Environment |
| Power: |
AC110~220V, 50/60 Hz |
| Temperature: |
5~40 0C |
| Humidity: |
< 80% |
| Application Scope |
| Adult, pediatric and neonatal |
| Performance Specifications |
| Display: |
12.1” color TFT
Resolution:800 x 600 |
| Trace: |
9 waveforms |
| Sweep speed: |
6.25, 12.5, 25, 50 mm/sec |
| Indicator: |
Alarm indicator, Power indicator,
QRS beep and alarm sound |
| Interface: |
Net Port |
| Battery: |
Rechargeable |
| Trend time: |
1~72 hours |
| Alarm: |
3-level audible and visual alarm |
| Networking: |
Can be connected to
central monitoring system |
| Recorder: |
Built-in, thermal array |
|
ECG
|
| 5-lead selectable |
|
| Input: |
5-lead: RA; LA; RL; LL; C |
| Lead selection: |
I; II; III; avR; avL; avF; V |
| ECG selection: |
7 channels |
| Gain waveform: |
x0.5; x1; x2; x4 |
| Sweep speed: |
12.5mm/s, 25mm/s, 50mm/s |
| Heart Rate range: |
Adult: 15~300bpm;
Pediatric/Neonatal: 15~350bpm |
| Accuracy: |
±2bpm or ±2%, whichever is greater |
| Resolution: |
1bpm |
| Protection: |
Withstand 4000VAC/50Hz voltage
in isolation. Against electro surgical
interference and defibrillation |
| CMRR: |
85 dB |
| Calibration signal: |
1mV 5% |
| Operation modes: |
Diagnostic, Monitor, Surgery |
| Bandwidth: |
0.05~75 Hz |
| Alarm range: |
Adult: 0~300bpm
Pediatrinc/Neonatal: 0~350bpm |
| S-T detection: |
YES
Measurement range: -1.0mV~1.0mV
Alarm range: -1.0mV~1.0mV |
| Arrhythmia analysis: |
YES |
| Pacemaking analysis: |
YES |
| Alarm: |
YES, audible and visual alarm,
alarm events recallable |
|
| |
|
Resplration
|
| Method: |
RA-LL impedance |
| Measurement range: |
Adult: 1~99 rpm
Pediatric/Neonatal: 1~99 rpm |
| Resolution: |
1 rpm |
| Accuracy: |
±2 rpm |
| Alarm range: |
Adult: 1~99 rpm
Pediatric/Neonatal: 1~99 rpm |
| |
SpO2
|
| Measurement range: |
0~100% |
| Resolution: |
1% |
| Accuracy: |
80~100% ±2digit
60~79% ±3digit
0~60% unspecified |
| Alarm range: |
0~100% |
|
|
| |
Pulse Rate:
|
| Range: |
0~254 bpm |
| Resolution: |
1 bpm |
| Accuracy: |
±2bpm or ±2%, whichever is greater |
| Alarm range: |
0~254 bpm |
|
|
NIBP
|
| Method: |
Oscillometric |
| Operation modes: |
Manual/Automatic |
| Measurement unit: |
mmHg/kPa selectable |
| Measurement types: |
Systolic, Diastolic, Mean |
| Measurement range: |
Systolic: 40~300 mmHg
Diastolic: 10~220 mmHg
Mean: 20~240 mmHg |
| Over-pressure protection : |
YES |
| Resolution: |
1mmHg |
| Accuracy: |
Mean error and standard deciation
per ANSI/AAMI SP-10 |
| Alarm: |
Systolic: 40~240 mmHg
Diastolic: 10~180 mmHg
Mean: 20~200 mmHg |
|
Temperature
|
| Measurement Range |
0–45°C |
| Resolution |
0.1°C |
| Accuracy: |
±0.2 0C (including probe) |
| Channel |
Dual-channel |
| Alarm range: |
0~45 0C |
|
| |
|
| |
|
