VSM 8 ARGOS


M8 ARGOS (International Only)

Features of the M8 ARGOS include:

12.1” Color TFT Display with 8 waveforms
Arrhythmia Analysis, multi-lead S-T Segment Analysis and Pace Maker Detection
40-second full-disclosure Waveform Review
Maximum 4-channel IBP, Multi-Gas Measuring,"Trend Screen" Mode and "Viewbed Screen" Mode
Mainstream / Sidestream EtCO2
Networked Monitoring

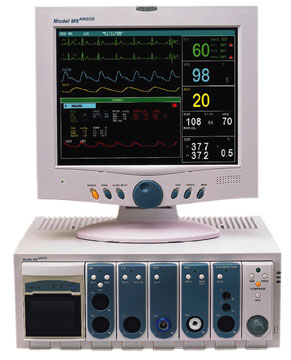

M8 ARGOS



- M8 ARGOS Specifications -

General Specifications

Display

 Display: 12.1” color TFT
800x600 resolution
Trace 8 Waveforms
Sweep 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Indicator Alarm Indicator
Power Indicator
QRS beep and alarm sound
Interface Net Port
Battery Rechargeable
Trend Time 1 – 72 hours
Alarm 3-level audible and visual alarm
Networking Can be connected to Mediaid central station system



ECG + RESP + Dual TEMP MODULE ECG
5-lead/3-lead Selectable
Input 5 lead (RA, LA, RL, LL, V or R, L, N, F, C)



 3 lead (RA, LA, LL or R, L, F)
Lead Selection 5 lead [I, II, III, avR, avL, avF, V(n)]
  3 lead (I, II, III)
ECG Waveform 2 channels
Gain Selection x0.25, x0.5, x1, x2(mm/mV), auto
Sweep Speed 12.5mm/s, 25mm/s, 50mm/s
Heart Rate Range Adult:                      15 – 300 bpm
Pediatric/Neonatal: 15 – 350 bpm
Accuracy ±1 bpm or ±1%, whichever is greater
Resolution 1 bpm
Protection Withstand 4000V AC/50Hz in isolation
Against electrosurgical interference and defibrillation
CMRR Diagnostic mode: 90 dB
Monitoring Mode >105 dB
Operating Mode >105 dB
Modes Diagnostic, Monitor and Surgery
Bandwidth 0.05 – 100 Hz
Alarm Range Adult:                     15 – 300 bpm
Pediatric/Neonatal: 0 – 350 bpm
S-T Detection Yes
S-T Measurement Range -2.0mV – 2.0mV
S-T Alarm Range -2.0mV – 2.0mV
Arrhythmia Analysis Yes
Pace Detection Yes
Alarm Yes, Audible and visual alarm, Alarm events recallable



Respiration
Method RA-LL impedance
Measurement Range Adult:                      1 – 120 rpm
Pediatric/Neonatal: 0 – 150 rpm
Accuracy 7 – 150 rpm: ±2 rpm or ±2%, whichever is greater
0 – 6 rpm, unspecified
Alarm Range Adult:                      1 – 120 rpm
Pediatric/Neonatal: 1 – 150 rpm
Apnea alarm Yes



Temperature (Surface and Intracavity)
Measurement Range 0 – 50 °C
Resolution 0.1°C
Accuracy ±0.1°C (not including Probe)
Channel Dual-channel
Alarm Range 0 – 50 °C



NIBP MODULE
Method Oscillometric
Operation Modes Manual/Automatic/STAT
Measurement Unit mmHg / kPa selectable
Measurement Types Systolic, Diastolic and Mean
Measurement Range Adult:       40 – 300 mmHg
Pediatric: 10 – 220 mmHg
Neonatal: 20 – 240 mmHg
Over Pressure Protection Yes
Resolution 1 mmHg
Accuracy Mean error and standard deviation per ANSI/AAMI SP-10
Alarm Systolic, Diastolic and Mean



SpO2 MODULE
Measurement Range 0 – 100%
Resolution 1%
Accuracy 70 – 100% ±2% , 0 – 69% unspecified
Alarm Range 0 – 100%
Pulse Rate Range 0 – 254 bpm
Pulse Rate Resolution 1bpm
Pulse Rate Accuracy Pediaitric & Adult: ±2bpm (30 – 250 bpm)
Neonate:              ±3bpm (30 – 250 bpm)
Pulse Rate Alarm 0 – 254 bpm



Masimo SET SpO2 MODULE
Measurement Range 0 – 100%
No motion conditions Adult/Pediatric: 70 – 100% ±2%, 0 – 69% unspecified
Neonate:           70 – 100% ±3%, 0 – 69% unspecified
During motion conditions 70 – 100% ±3%, 0 – 69% unspecified
Low Perfusion Performance Pulse Amplitude:       > 0.02%
Light Transmissivity: > 5%
SpO2 Accuracy:        ±2%
PR Accuracy:            ±3 bpm
Pulse Rate Range 25 – 250 bpm
Accuracy In static condition:    ±3 bpm
In motion condition:  ±5 bpm



DUAL – IBP MODULE
Measurement Range -50 – 300 mmHg
Channel 2 channels
Pressure Transducer Sensitivity: 5 mV/V/mmHg
Impedence Range 300 – 3000 rpm
Transducer Sites ART, PA, CVP, RAP, LAOP, ICP
Measurement Unit mmHg/kPa selectable
Resolution 1 mmHg
Accuracy ±1 mmHg or ±2%, whichever is greater
Alarm Range -50 – 300 mmHg



CO MODULE
Method Thermodilution
Measurement Range CO: 0.1 – 20 lit./min.
TB 23 – 43 ºC
TI -1 – 27 ºC
Resolution CO: 0.1 lit./min.
Temperature ±0.1 ºC
Accuracy CO: ±2% or ±2% L/min.
TB ±0.1 ºC
TI ±0.1 ºC



EtCO2 MODULE
Method Infrared Absorption
Measurement Mode Sidestream or Mainstream (optional)
Measurement Range   EtCO2:  0 – 99 mmHg
InsCO2: 0 – 99 mmHg
AwRR 0 – 150 rpm (Mainstream)
0 – 120 rpm (Sidestream)
Resolution  EtCO2:  1 mmHg
InsCO2: 1 mmHg
AwRR 1 rpm
Accuracy CO2 Concentration:
±2 mmHg (0 – 40 mmHg
±5% of reading (41 – 76 mmHg)
±10% of reading (77– 99 mmHg)
AwRR ±2 rpm (Mainstream)
±2 rpm (0 – 70 rpm) (Sidestream)
±5 rpm (> 70 rpm) (Sidestream)
Alarm Range Same as Measurement Range
Apnea Alarm Yes



Multi-Gas / O2 MODULE
Method Infrared Absorption
Gas Sorts

EtCO2, N2O, O2, Des, Iso, Enf, Sev,
 Hal O2 (optional, Paramagnetic sensor)

Measurement Range EtCO2:  0 – 10% (0 – 76 mmHg)
N2O:     0 – 100%
O2:       0 – 100%
Enf, Iso, Hal: 0 – 5%
Sev:      0 – 8%
Des:      0 – 18%
AwRR:  2 – 100 rpm
Resolution CO2:     0.1% (1 mmHg)
N2O:     1%
O2:       0.1% (1 mmHg)
Enf, Iso, Hal, Sev, Des: 0.01%
Respiration Rate 1 bpm
Data Output: Fi and Et Values
2 – 100 ±1 bpm
Other: Up to 3 waveforms displayed
           Agent mixture detection
           MAC value displayed



RECORDER MODULE
Thermal Array 2 channels
Record Width 48mm, (record paper 50mm)
Record Speed 25mm/s, 50mm/s



Configurations
Standard Configurations Main Unit, 12.1" TFT Display with Operating Panel
Optional Configurations ECG + RESP + Dual TEMP, NIBP, SpO2, 2xDUAL-IBP, CO2, EtCO2,
Multi-Gas/O2, Operating Module, Thermal Recorder



Power Source (AC/DC)
Power 110 – 240V AC, 50/60 Hz



Ambient Conditions
Temperature 0 – 40șC
Humidity 15 – 95% (non-condensing)
Safety Meets the requirements of IEC 60601 serials,
  CE markings according to MDD93/42/EEC



Physical Dimensions
Dimensions 340W x 120H x 250D (mm)
Weight 7.3 kg (main unit with ECG, SpO2, NIBP, Recorder)
